Clear Polycarbonate Sheet
Clear polycarbonate for optical and impact-sensitive parts; confirm transmission and impact grade at the specified thickness.
Polycarbonate Glazing & Secondary Panels
Custom clear PC panels for building openings: send the opening schedule, frame detail, exposure and required evidence for a quote.
Buying polycarbonate for a building opening? Start with the existing frame and the job the new panel must do. SinoPlastix supplies custom clear solid PC sheets and CNC-finished parts to a dimensioned schedule. Send the opening and retention detail with the intended impact, cleaning and exposure conditions; a sheet thickness alone does not describe a workable glazing order.
Send an opening schedule View clear PC options
Choose the opening, then the panel
These building-opening briefs lead to different drawings and checks. For exterior curtain-wall modules with weather joints, use the facade specification guide; for rooflights, use the roofing guide. Machine windows have a separate guarding and hazard-assessment route.
Swipe the table sideways to see all columns →
| Building opening | What to measure or decide | What SinoPlastix can quote |
|---|---|---|
| Inside secondary panel | Clear opening, existing sash/trim, fixing position, desired access for cleaning, ventilation and any impact exposure | Clear or finished PC panel cut to the approved size and edge detail; a sample for frame-fit review |

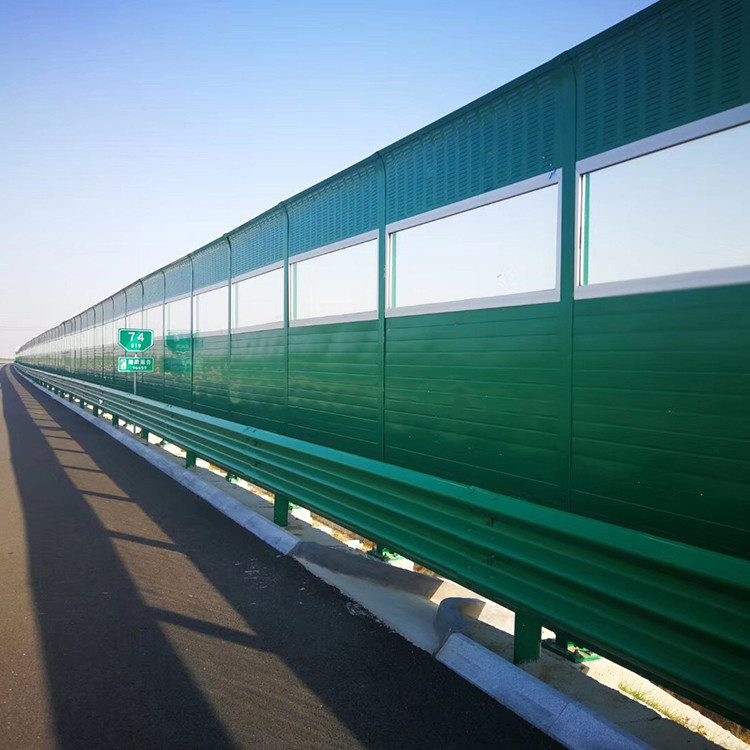

| Public-space protective panel | Likely impact source, exposed side, supported dimensions, frame retention and project test criterion | Proposed solid PC grade/thickness and fabrication; original report scope for the quoted material, where applicable |
| Replacement panel in an existing frame | Rebate depth, bead or gasket, four-edge or partial support, drainage, outdoor UV side and local approval route | Custom PC sheet and cut-out schedule; the project designer confirms fit, load and whole-opening compliance |
Give the supplier a usable opening schedule
Measure each visible opening and the available rebate separately. Record width × height for each panel, support on each edge, bead/gasket size, clearance for panel movement, holes and cut-outs, and which face is exposed to sun, occupants and cleaning. A photo of the existing frame beside a dimensioned section can prevent a correctly cut sheet from arriving with no way to retain it.
Existing pane
Record sash and opening
Record sash and opening
Air space
Set access and ventilation plan
Set access and ventilation plan
PC panel
State grade, size and exposed face
State grade, size and exposed face
Retention
Show bead, gasket and fixing
Show bead, gasket and fixing

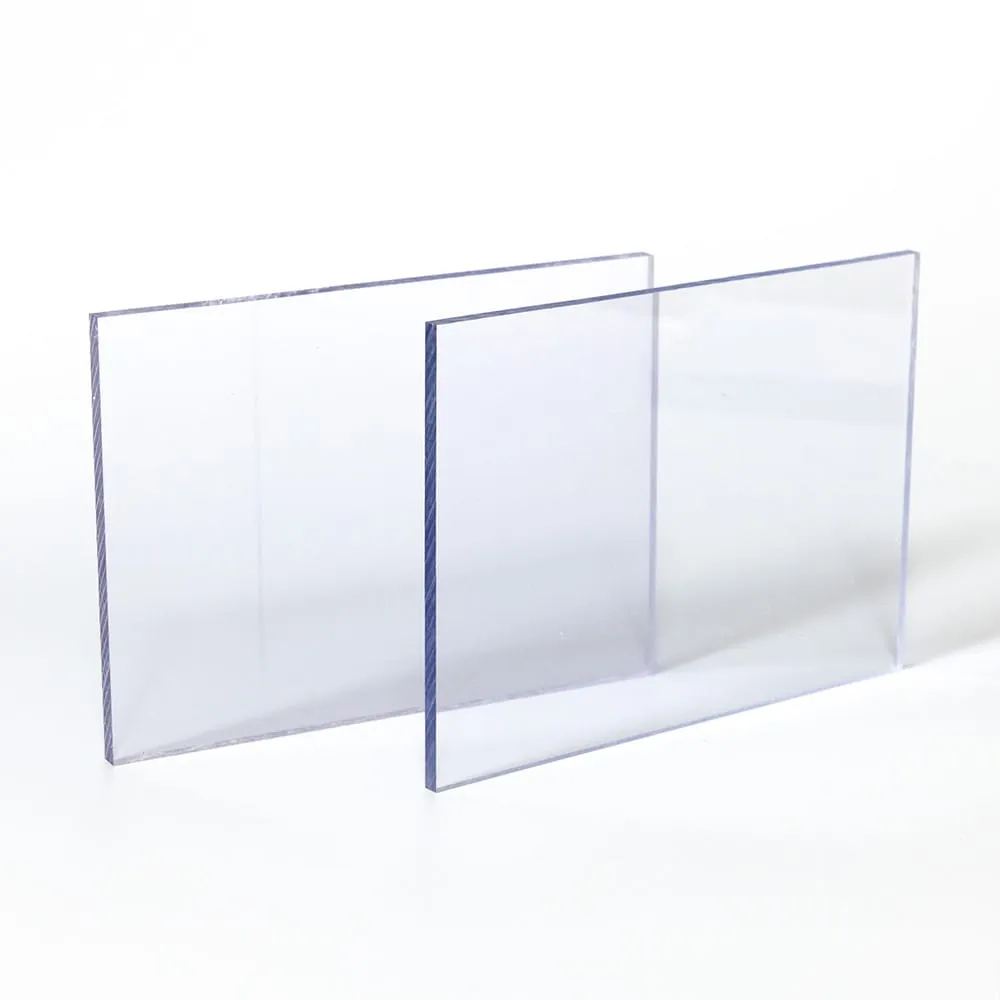

SinoPlastix’s representative clear flat PC reference lists 89% light transmission at 3 mm under ISO 13468-1 and a density of 1.20 g/cm³ under ISO 1183-1. At that density, a 3 mm sheet is about 3.6 kg/m² before frame and hardware. Those figures help discuss daylight and handling; they do not select a safe thickness or certify the installed opening. Request the data and reports for the exact grade, thickness, finish and test method offered in the quotation.
Match the surface and evidence to the use
Clear solid PC suits a see-through brief; hard-coated PC can be discussed when frequent wiping or touch is expected. Specify cleaners and chemicals, whether UV exposure reaches the panel, and whether the buyer needs a removable panel or a permanently retained one. View a physical sample under the actual lighting before approving colour, reflections and edge finish.
If the project names an impact or security test, send the standard and required classification. SinoPlastix can supply applicable original material reports on request. The building designer or installer must compare the offered grade and specimen with the complete panel-and-frame arrangement; a material report does not approve an untested installed window.
Send a glazing RFQ that can be priced
Attach the opening schedule, frame section, site photos, proposed use, impact criterion if any, indoor/outdoor exposure, colour and surface target, quantity and destination. Mark any dimension awaiting site survey. The written quote can then state the proposed PC grade and thickness, finished dimensions and tolerances, cutting or CNC scope, material evidence available, packing, price and production window. Published price and lead-time figures are planning averages; actual terms follow the order complexity and written quotation.
Questions buyers ask
Can I replace a glass pane with the same-size PC sheet?
First check the rebate, beads or gaskets, edge support, drainage, movement clearance and local glazing requirement. Send a frame section and surveyed opening; the installer or designer confirms the final panel-and-frame design.
How much does a 3 mm solid PC panel weigh?
Using a representative PC density of 1.20 g/cm³, sheet-only mass is about 3.6 kg/m² at 3 mm. Confirm the exact grade and finished size for handling and frame design; the figure excludes hardware.
Will a hard-coated PC panel stay clear after cleaning?
Ask for the offered coating’s cleaning and chemical guidance, then test a sample with the planned method. Coating choice can improve abrasion performance, but no sheet remains clear under every cleaner and cleaning practice.
Can you supply cut-to-size panels for a schedule of openings?
Yes. Send each panel ID, finished width and height, drawing revision, edge and hole details, quantity and packing sequence. SinoPlastix can quote custom PC sheet and CNC work; the written quote confirms tolerances and production window.
